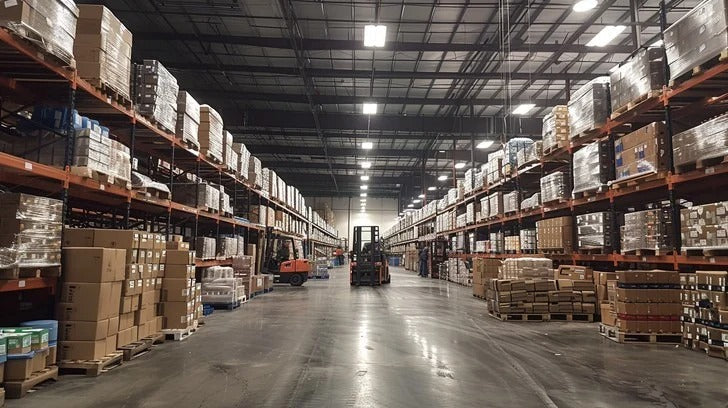

Commercial projects—from warehouses and distribution centers to big-box retail stores, gymnasiums, and manufacturing facilities—demand lighting solutions that balance performance, cost-efficiency, and long-term reliability. Unlike residential lighting, commercial projects involve larger spaces (often 10,000+ sq. ft.), higher ceilings (15-40 ft.), and stricter requirements for safety, energy codes, and ROI . LED UFO High Bay Lights have emerged as the gold standard for these applications, but choosing the right model requires more than just picking a wattage. This guide is tailored to commercial project managers, contractors, and facility owners, breaking down the critical factors that ensure your lighting investment aligns with project goals, budget, and compliance standards.
Step 1: Define Commercial Lighting Requirements (Avoid Over-Engineering or Underperformance)
The first rule of commercial lighting procurement is to match the fixture to your project’s specific needs—this eliminates wasted energy, reduces installation costs, and ensures regulatory compliance. Key questions to answer:
- Illuminance Needs (Lux/Foot-Candles):
- Warehouses & logistics hubs: 150-300 lux (14-28 foot-candles) for general storage; 300-500 lux for picking/packing zones .
- Manufacturing facilities: 500-1000 lux for precision assembly or quality control .
- Gymnasiums & sports halls: 300-750 lux for athlete safety and spectator visibility .
- Big-box retail: 500-1000 lux to highlight products and enhance shopping experiences .
- Ceiling Height & Coverage:
Use this quick reference to determine wattage and beam angle (based on industry standards ):
|
Ceiling Height (Ft)
|
Recommended Wattage
|
Beam Angle
|
Coverage Area Per Fixture
|
|
15-20 (4.5-6m)
|
100-150W
|
120°
|
200-300 sq. ft.
|
|
20-30 (6-9m)
|
150-200W
|
90°
|
300-400 sq. ft.
|
|
30-40 (9-12m)
|
200-240W
|
60°
|
400-500 sq. ft.
|
- Environmental Conditions: Will the space be dusty (e.g., textile warehouses), humid (e.g., food processing plants), or exposed to water (e.g., loading docks)? This dictates the required IP rating (see Step 3).
Step 2: Prioritize Energy Efficiency & ROI (Critical for Commercial Budgets)
Commercial projects have long-term operational costs, so energy efficiency directly impacts profitability. Focus on these metrics:
- Luminous Efficacy (LPW): Aim for 140-180 lumens per watt (LPW) — higher efficacy means lower electricity bills. A 150W LED UFO High Bay (24,000 lumens at 160 LPW) replaces a 400W metal halide lamp, cutting energy use by 62.5% .
- ROI Calculation: Most commercial LED installations recoup costs in 1-3 years. For example, a 100-fixture warehouse upgrade (150W LED vs. 400W MH) saves ~\(15,000 annually in electricity (based on \)0.15/kWh) .
- Adjustable Wattage: Opt for fixtures with selectable wattage (e.g., 150W/200W/240W) — this flexibility lets you adapt to space repurposing (e.g., converting a storage area to a production zone) without replacing fixtures .
Step 3: Choose Durability & Protection Ratings for Commercial Environments
Commercial spaces see heavy use, so fixtures must withstand wear, environmental stress, and minimal maintenance. Key factors:
- IP Rating:
- IP65: Dust-tight and resistant to low-pressure water jets — ideal for most warehouses, retail, and gyms .
- IP66: Enhanced water resistance (high-pressure jets) — suitable for outdoor covered areas or washdown environments.
- IP69K: For food processing or pharmaceutical facilities (resists high-temperature, high-pressure washdowns) .
- Construction Materials: Look for die-cast aluminum housings (superior heat dissipation) and UV-stabilized polycarbonate lenses (impact resistance). Finned heat sinks improve thermal management, extending lifespan to 50,000-100,000 hours .
- Impact Resistance (IK Rating): IK10-rated fixtures withstand accidental impacts (e.g., forklift collisions in warehouses) — a must for high-traffic commercial spaces.
Step 4: Optimize Light Quality for Safety & Productivity
Poor light quality leads to accidents, reduced productivity, and customer dissatisfaction in commercial settings. Focus on:
- Color Temperature (CCT):
- 3000K (Warm Neutral): Creates a welcoming vibe for retail or gyms.
- 4000K (Neutral White): Balances comfort and focus — ideal for warehouses and manufacturing .
- 5000K (Daylight White): Maximizes visibility for precision tasks or logistics.
Choose fixtures with selectable CCT (3000K/4000K/5000K) for project flexibility .
- Color Rendering Index (CRI): Ra ≥80 for general commercial use; Ra ≥90 for retail (accurate product color) or quality control .
- Flicker-Free & Glare Control: Flicker-free drivers (≤10% flicker) reduce eye strain; anti-glare lenses prevent discomfort in open spaces (critical for gyms or retail floors) .
Step 5: Ensure Compliance & Certifications (Non-Negotiable for Commercial Projects)
Commercial projects require adherence to local codes and industry standards — certifications validate performance and compliance:
- DLC Certification: Mandatory for energy rebates in North America; ensures high efficiency and quality.
- CE/RoHS: Required for European markets (restricts hazardous substances).
- NSF Certification: For food processing facilities (sanitary design).
- UL/DLC Premium: Indicates top-tier efficiency (≥170 LPW) and longer warranty (5+ years) .
Avoid uncertified fixtures — they may fail inspections, void rebates, or increase liability risks.
Step 6: Evaluate Smart Features for Modern Commercial Spaces
Smart lighting enhances operational efficiency and future-proofs commercial projects:
- Dimming & Controls: 0-10V or DALI dimming lets you adjust brightness based on occupancy (e.g., motion sensors in warehouses) or time of day (e.g., retail evening hours) .
- IoT Integration: Fixtures with Bluetooth/Wi-Fi connect to building management systems (BMS) for remote monitoring, energy tracking, and fault alerts — critical for large commercial campuses.
- Wide Voltage Range (AC90-305V): Ensures stability in industrial or commercial power grids (prevents flickering or burnout) .
Common Mistakes to Avoid in Commercial LED UFO High Bay Purchases
- Choosing the Wrong Wattage: Overpowering small spaces wastes energy; underpowering creates dark spots (use lighting design software like Dialux to simulate coverage) .
- Ignoring Rebates: Uncertified fixtures miss out on DLC or local energy rebates (can reduce project costs by 20-30%).
- Sacrificing Durability for Price: Cheap fixtures fail quickly in commercial environments — opt for 5-year warranties to avoid maintenance downtime .
- Overlooking Installation Costs: Choose lightweight fixtures (≤25 lbs) or pendant-mount designs to reduce labor costs (critical for high-ceiling projects) .
Conclusion: Invest Wisely for Commercial Success
LED UFO High Bay Lights are a cornerstone of commercial project lighting — the right choice drives energy savings, safety, and ROI. By following this guide, you’ll select fixtures that align with your project’s illuminance needs, budget, and compliance requirements. Remember: commercial lighting is an investment, not an expense — prioritizing efficiency, durability, and flexibility ensures long-term value.
