How Many LED UFO High Bay Lights Do You Need for a Warehouse?

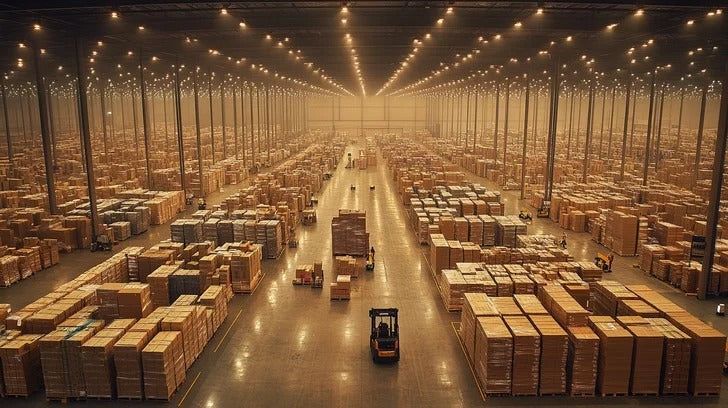

Walk into a warehouse with poor lighting, and the signs are unmistakable: forklift operators straining to read rack labels, pickers squinting at small text, and dark aisles that feel more like obstacles than work areas. Walk into a well-lit facility, and operations run smoothly, safely, and efficiently.

So, how do you determine how many LED UFO high bay lights your warehouse needs? The short answer is not a fixed number—but by understanding a few core principles and applying a straightforward calculation, you can arrive at a precise, actionable answer.

1. Start With the Fundamentals: Understanding Lumens, Foot-Candles, and Efficacy

Before any calculation, clarify the key metrics that drive lighting performance.

1.1 Lumens vs. Watts

Watts measure energy consumption. Lumens measure total light output. Selecting fixtures by wattage alone is a common and costly mistake.

In legacy metal halide (MH) systems, a 400W MH fixture draws around 458W, including ballast, yet delivers only about 55 lm/W of usable light. By contrast, a 150W modern LED fixture delivers over 140 lm/W—meaning it produces more lumens with less than one‑third the power.

Always compare lumens, not watts.

1.2 Foot-Candles (fc) — Light on the Work Plane

Foot-candles measure the light actually reaching a surface—in a warehouse, typically the floor, rack faces, or workstation. One foot‑candle equals one lumen per square foot.

While lumens tell you how much a fixture emits, foot-candles tell you how effective it is where the work happens.

1.3 Efficacy (lm/W) — The Efficiency Metric

Efficacy = Lumens ÷ Watts. Higher efficacy means more light per dollar of electricity.

Premium LED UFO fixtures typically achieve 130–150+ lm/W. A 150W LED delivering 21,750 lumens has an efficacy of 145 lm/W. When comparing fixtures, efficacy is your guide to long-term operating costs. High-efficacy fixtures are also a common requirement for utility rebates.

2. Determine Your Target Foot-Candle Level (The IES Standard)

Not all warehouse zones need the same brightness. The Illuminating Engineering Society (IES) provides zone‑specific recommendations–the authoritative starting point for professional lighting design.

The table below summarizes IES‑based recommended foot-candle levels for common warehouse areas:

Sources: IES RP-7-21, ANSI/IES standards, and industry field observations.

A critical nuance: In high‑volume e‑commerce picking stations, IES recommends 30–50 fc, but practice‑based targets of 50–70 fc significantly reduce visual search time for small barcodes and SKU numbers. Under‑lighting forces eye muscles to work harder, leading to fatigue and errors late in shifts.

3. Account for Real‑World Factors: Light Loss Factor (LLF) and Coefficient of Utilization (CU)

Raw lumen calculations almost always fall short. Two key factors ensure your lighting delivers maintained levels, not just initial brightness.

3.1 Light Loss Factor (LLF)

Over time, all light sources lose output from two main causes:

• Lumen depreciation (L70) – LEDs naturally dim as they age; quality fixtures reach 70% of initial output only after 50,000–100,000+ hours.

• Luminaire dirt depreciation (LDD) – Dust accumulates on lenses, reducing total light output.

For modern, well‑maintained LED high bays, a practical LLF of 0.75 to 0.85 is realistic. An industry shortcut: multiply your total lumens needed by 1.25 to account for depreciation.

3.2 Coefficient of Utilization (CU)

CU represents the percentage of light that actually reaches the work plane after accounting for room geometry, surface reflectances (walls, ceilings, floors), and fixture beam angle.

Typical CU values for warehouses:

• Bright, open spaces with white walls/ceilings: 0.70–0.80

• Typical industrial / gray surfaces: 0.60–0.65

• Dark, cluttered spaces or tall, dark racking: 0.50 or lower

Ignoring CU is like navigating without a map—you might end up with a space only half as bright as intended.

4. The Step‑by‑Step Calculation Formula

The Lumen Method is the industry‑standard formula for estimating the number of high bay fixtures needed:

Number of Fixtures = (Area in sq ft × Target Foot-Candles) ÷ (Lumens per Fixture)

Or the full professional formula accounting for losses:

Number of Fixtures = (Target Foot‑Candles × Area) ÷ (Lumens per Fixture × CU × LLF)

4.1 Quick Estimate Formula (Simple)

This gives a baseline, not a final specification, but is useful for budgeting.

Example: 25,000 sq ft general storage warehouse

• Area = 25,000 sq ft

• Target foot-candles = 30 (IES general storage)

• Total lumens needed = 25,000 × 30 = 750,000 lumens

• Chosen fixture output = 30,000 lumens per fixture (e.g., 200W LED)

• Number of fixtures = 750,000 ÷ 30,000 = 25 fixtures

4.2 Real‑World Formula (With LLF and CU)

Now include LLF and CU for maintained illuminance:

• Total lumens needed = Area × Target FC = 750,000 lm

• CU = 0.65 (typical industrial surfaces)

• LLF = 0.80 (typical maintenance factor)

• Adjusted lumens needed = 750,000 ÷ (0.65 × 0.80) = 750,000 ÷ 0.52 = 1,442,308 lm

• Number of fixtures = 1,442,308 lm ÷ 30,000 lm/fixture = 48 fixtures

The difference between the simple (25 fixtures) and real‑world (48 fixtures) estimate is dramatic—the real‑world formula yields nearly double the fixture count. This is why so many budget‑only designs under‑light spaces.

4.3 Practical Example: Warehouse Retrofit

A real‑world case study: a 50,000 sq ft distribution center operating 18 hours/day, six days/week, originally lit by 120 400W metal halide fixtures. An audit revealed inconsistent illuminance ranging from 10 fc in aisles to 25 fc directly under fixtures. The solution specified 150W UFO LED high bays delivering over 140 lm/W. After a detailed photometric layout, the facility cut energy costs by 70% and achieved full ROI in under 24 months.

4.4 Alternative: Lumens per Square Foot Reference

A simpler alternative: Use lumens‑per‑square‑foot guidelines derived from IES standards:

Multiply your square footage by the appropriate lumens‑per‑sq‑ft figure for a quick estimate.

5. Ceiling Height and Beam Angle: The Overlooked Variables

Even with perfect calculations, poor beam angle selection leads to dark spots and hot zones.

5.1 Ceiling Height Determines Fixture Type

Higher ceilings do not automatically mean more lights—but they do require higher lumen output or narrower beam angles to project usable light to the floor.

5.2 Ceiling Height Guide

5.3 Beam Angle Effects

• 120° wide beam: Spreads light broadly, best for lower ceilings (under 20 ft). May cause dark spots between fixtures at higher mounting heights.

• 90–100° medium beam: Standard choice for 20–30 ft ceilings. Balances coverage with intensity.

• 60–90° narrow beam: Projects light downward for ceilings over 30 ft, focusing intensity where needed.
  Source: Logos Lighting high‑bay selection guide.

6. Practical Example Walkthrough

Let's calculate for a 15,000 sq ft warehouse with 25 ft ceilings, general storage plus active picking, using 150W LED fixtures (21,750 lumens).

We'll compare the quick estimate with the professional real‑world calculation.

6.1 Quick Estimate (Simple)

• Target foot-candles = 30 (IES general storage)

• Total lumens needed = 15,000 × 30 = 450,000 lm

• Fixture lumen output = 21,750 lm

• Number of fixtures = 450,000 ÷ 21,750 ≈ 21 fixtures

6.2 Professional Estimate (With LLF and CU)

• Total lumens needed (including LLF+CU) = 450,000 ÷ (0.65 CU × 0.80 LLF) = 450,000 ÷ 0.52 = 865,385 lm

• Number of fixtures = 865,385 ÷ 21,750 ≈ 40 fixtures

6.3 Real‑World Context

For a 1,000 m² (~10,800 sq ft) warehouse with 9m (30 ft) ceilings and general warehouse work using 24,000 lm high bays, the final layout typically lands between 10 and 14 fixtures. This range exists because layout, racking, and beam angle all affect the final count.

7. Layout and Placement: Why It Matters as Much as Quantity

Even with the correct number of fixtures, poor placement creates dark zones and glare. Professional layouts adjust based on aisle width, racking height, machinery positions, and working paths.

7.1 General Spacing Guidelines

Spacing roughly = mounting height.

• At 20 ft mounting height, space fixtures about 20 ft apart for even coverage.

• A 120° beam at lower heights provides wide, uniform coverage.

• A 60° beam at high mounting heights (40 ft+) projects light downward intensively.

7.2 Reflective Surfaces Matter

Dark surfaces absorb light—a workshop with black walls may need 10–20% more lumens than one with white surfaces.

8. Light Quality Considerations: Uniformity, CCT, and CRI

8.1 Uniformity — Beyond Average Foot‑Candles

A common specification pitfall: relying solely on "average foot-candles." A warehouse can average 30 fc yet still be dangerous if it consists of hot spots (60 fc) directly under fixtures and dark spots (5 fc) between them.

For most industrial zones, target maximum‑to‑minimum uniformity ratio of 2:1 or better. For high‑accuracy tasks, aim for 1.5:1 or tighter.

8.2 CCT (Color Temperature)

• 4000K–5000K: Neutral to cool white—standard for most warehouses, providing good visibility without excessive blue light.

• 5000K–5700K: Cool white—recommended for high‑activity zones like picking and packing, improving perceived brightness and contrast.

8.3 CRI (Color Rendering Index)

Opt for CRI ≥ 80 for general warehouse tasks. For picking stations where label and SKU accuracy is critical, CRI ≥ 90 reduces error rates.

9. Case Studies: Real‑World Results

9.1 50,000 sq ft Warehouse Retrofit

A distribution center replaced 120 400W metal halide fixtures (458W actual draw each) with 150W LED high bays. The new fixtures delivered over 140 lm/W, cutting energy costs by 70% and achieving full ROI in under 24 months.

9.2 UK Warehousing & Distribution

A UK facility replaced 250W HID high bays with 120W LED high bays, using less than half the power while improving lux levels significantly. The project achieved 63% lighting energy savings in the first year, an electricity saving of £10,085, and a payback period of just over three years.

9.3 Distribution Center ROI Model

A 50,000 sq ft 24/7 distribution center upgrading from legacy T8 fluorescent high bays to DLC Premium‑certified linear LEDs achieved a full ROI in under 1.5 years. The modeled annual savings exceeded $45,000 in combined energy and maintenance reductions.

9.4 Energy and Maintenance Savings Summary

10. DLC Certification and Utility Rebates

DLC Premium certification is the gateway to approximately 75% of North American energy efficiency programs. These provide utility rebates that reduce upfront project costs significantly.

When specifying fixtures, always:

• Verify the exact model number is listed on the DLC Qualified Products List (QPL)

• Request IES LM‑79‑19 reports (photometric performance of the complete fixture)

• Request IES LM‑80‑21 reports (lumen maintenance of the LED chips over 6,000+ hours)

• Insist on UL or ETL safety certification (UL 1598 or UL 8750) for insurance and code compliance

11. Quick Reference: Real‑World Fixture Count Ranges

Sources: DIY Smart Home Hub industry reference tables; SEEKINGLED project feedback.

12. Step‑by‑Step Selection Checklist

13. Summary Table: Quick Comparison by Application

Based on IES RP-7-21 recommendations and industry standards.

Conclusion

Determining how many LED UFO high bay lights your warehouse needs is a methodical process: start with IES‑based foot‑candle targets for each zone; calculate total lumens needed for maintained illuminance including LLF and CU; match fixture lumen output and beam angle to ceiling height; verify layout with spacing rules and photometric simulation; and confirm DLC certification, UL listing, and warranty.

With quality UFO high bays, typical payback periods range from 18 months to 3 years, with 50–70% energy reductions and virtually eliminated maintenance costs compared to legacy HID systems.

For precise results beyond initial estimation, always request a professional photometric layout from your lighting supplier before finalizing any high bay lighting specification.
