In the field of industrial lighting, "UFO High Bay Light" is a term that is both figurative and full of technical metaphors. It does not refer to "alien aircraft lighting equipment", but a high-efficiency lighting fixture designed for tall spaces. From the name breakdown, "UFO" refers directly to its iconic shape - a round, flat, integrated streamlined structure, which is similar to the "UFO" in the public's cognition; "High Bay Light" clarifies its functional positioning: lighting equipment suitable for "high ceiling" scenes (usually refers to indoor spaces above 5 meters, such as warehouses, factories, gymnasiums, etc.).
- In-depth analysis: What is a UFO mining lamp?
- How to choose a UFO High Bay Light suitable for a specific place?
- What are the differences in performance and price between different brands and models of UFO High Bay Light?
-
How to determine the power and luminous flux of the UFO High Bay Light required for a specific place?
-
What are the differences and advantages and disadvantages between UFO mining lamps and traditional mining lamps?
-
What types of LED UFO mining lamps are there?
- What are the lighting requirements for LED UFO mining lamp sites?
- Conclusion
In-depth analysis: What is a UFO mining lamp?
But behind this name, there is a deep logic of function-driven design and industrial scene adaptation. It is not a simple "appearance imitation", but a typical case of achieving performance breakthroughs through morphological optimization.
1. "UFO" appearance: not a gimmick, but the "optimal solution" of performance
Why does industrial lighting choose the "UFO" shape? This needs to start from the core contradiction of industrial lighting: high-space lighting requires "high power, long life, and easy maintenance", but traditional lamps (such as metal halide lamps and ordinary mining lamps) often face three major pain points - poor heat dissipation, complex installation, and uneven light distribution. The "UFO" shape design is precisely to systematically solve these problems.
"Aerodynamic" design for heat dissipation efficiency
High-power LED is the core light source of UFO High Bay Light (usually with a power of 100W-500W). It generates a lot of heat when working. If the heat dissipation is not good, it will not only lead to accelerated light decay (lifespan shortened by more than 50%), but also may cause safety hazards.
The round flat structure of UFO is not accidental: the fin design on the top (similar to the heat sink of spacecraft) combined with the streamlined surface can guide the air to form a "vortex circulation" on the surface of the lamp - cold air is sucked in from the bottom, and hot air rises rapidly along the gap of the fins and is discharged, and the heat dissipation efficiency is more than 30% higher than that of traditional square lamps. This "passive heat dissipation" design does not require additional fans, reduces the risk of mechanical failure, and also reduces energy consumption.
The "reliability revolution" of integrated structure
Traditional high bay lights are mostly split designs of "lamp body + bracket + power supply", and dust and water are easily accumulated at the joints of the components. In industrial environments with high dust and humidity (such as food processing plants and logistics warehouses), the failure rate remains high.
UFO High Bay Light uses a "fully sealed integrated die-cast aluminum housing". The lamp body, power supply, and light source are integrated into an inseparable whole. The protection level can reach IP65 (completely dustproof and can withstand low-pressure water spray) or even IP66 (high-pressure water spray), which can adapt to harsh scenes with a lot of oil and high dust. This design also simplifies installation - only one hook is needed to fix it, saving 50% of the installation time compared to traditional lamps.
"No dead angle coverage" of light distribution
The core requirement of high-space lighting is "uniform lighting over a large area" (such as no shadows between warehouse shelves and no glare in gymnasiums). The square or long strip design of traditional lamps easily forms "area overlap" or "blind spots".
The circular light-emitting surface of UFO is matched with a customized lens (usually 30°-120° adjustable light distribution angle), which can make the light "circularly diffused". At a height of 10 meters, a single lamp can cover a circular area of 20-50㎡. When multiple lamps are combined, they can achieve "seamless splicing" through angle matching, avoiding the "overlapping waste of light spots" or "omission of dark areas" of traditional lamps.
2.The essence of "High Bay": lighting logic tailored for "high space"
The core of "High Bay" (high ceiling) is "height adaptation" - when the lighting height exceeds 5 meters, the luminous flux (brightness) and light distribution curve of ordinary lamps will "fail": the light is severely attenuated during propagation, and the brightness is insufficient when it reaches the ground; or due to improper angles, it leads to "too bright near and too dark far away".
The "high space adaptability" of UFO High Bay Light is reflected in three dimensions:
Precise matching of luminous flux and illumination
High space requires "high penetration" light. The luminous flux of UFO High Bay Light is usually 10000lm-50000lm (lumens, brightness unit), which is equivalent to the sum of 10-50 ordinary household LED bulbs. More importantly, the "uniformity of illumination" - through the optical simulation software to optimize the lens angle, ensure that at a height of 8-15 meters, the ground illumination (luminous flux received per unit area) difference does not exceed ±15% (much lower than the ±30% of traditional lamps), to avoid workers from visual fatigue due to uneven light.
Binding of color rendering and scene requirements
Different high spaces have different requirements for "color rendering" (Ra value): food processing plants need Ra≥90 (accurately identify whether the color of ingredients has deteriorated); mechanical workshops need Ra≥80 (distinguishing parts details); and logistics warehouses need Ra≥70 (satisfying cargo identification).
UFO High Bay Light can customize LED chips according to the scene, covering all aspects from high color rendering (Ra95) to economical models (Ra70), avoiding "energy waste caused by excessive color rendering" or "inadequate color rendering affecting production safety".
Stability against environmental interference
High spaces are often accompanied by "strong vibrations" (such as mechanical operation in factories) and "wide temperature differences" (such as cold chain warehouses - 20℃ to room temperature). The power supply of UFO High Bay Light adopts a wide voltage design (AC100-277V) to resist voltage fluctuations; the connection between the lamp body and the hook adopts an elastic shock-absorbing structure, which can withstand a 10G impact (equivalent to the impact of a car collision at 60km/h), ensuring stable operation in harsh environments.
3. Comparison with traditional high bay lights: a generational revolution in "lighting efficiency"
Before the popularization of UFO High Bay Lights, industrial high bay lighting has long relied on traditional light sources, such as metal halide lamps and high-pressure sodium lamps. The difference between the two is essentially a revolution in "energy efficiency" and "life cycle cost".
| Dimensions: Traditional | Traditional metal halide lamps | UFO High Bay Light（LED） |
|---|---|---|
| Energy consumption | 400W power only produces 10000lm luminous flux | 100W power can produce 13000lm luminous flux |
| Lifespan | Average 8000 hours (about 1 year) | Average 50,000 hours (about 10 years) |
| Startup time | 5-10 minutes of warm-up is required | Instant start (0.1-secondwith light) |
| Maintenance cost | Annual replacement 2-3 times, high labor costs | Replace once every 10 years, almost zero maintenance |
| Environmental protection | Contains mercury and requires special treatment after disposal | No heavy metals, recyclable |
Take a 1000㎡ warehouse (10 meters high) as an example: the traditional solution requires 20 400W metal halide lamps, with an annual electricity bill of about 15,000 yuan (calculated at 0.8 yuan/kWh, 12 hours a day); after switching to 20 100W UFO High Bay Lights, the annual electricity bill drops to 3,800 yuan, and the electricity bill can be saved by more than 110,000 yuan in 10 years, which far exceeds the purchase cost of the lamp itself.
How to choose a UFO High Bay Light suitable for a specific place?
I. Scene requirements analysis: Accurately locate core lighting goals
1. Quantify spatial characteristics
Height and area:
Select 100-200W lamps (luminous flux 13000-26000lm) for a height of 5-8 meters, covering an area of 20-40㎡;
200-400W lamps (luminous flux 26000-52000lm) are required for a height of 8-15 meters, and a single lamp covers 40-80㎡.
Case: A 10-meter-high warehouse requires 20 100W UFO lamps, and the ground illumination can reach 300-500lux to meet the needs of logistics sorting.
Functional zoning:
Warehouse: Shelf area (300-500lux), sorting area (500-750lux), and aisle (100-300lux) need to be zoned for lighting, and accurate coverage is achieved through 60°-120° adjustable lenses.
Gymnasium: The horizontal illumination of the competition area is ≥1500lux, and the vertical illumination is ≥1000lux. High color rendering lamps with a color temperature of 4000-6000K and Ra≥90 are selected to ensure the authenticity of the TV broadcast picture.
2. Special requirements of the industry
Food processing:
Hygiene standards: NSF certification is required, the surface of the lamp is dust-free, and the protection level is IP65 + shatterproof glass to avoid pollution risks.
Color rendering: Ra≥90, accurate identification of food color changes (such as meat freshness detection).
Cold chain storage:
Tolerance to extreme environments: lamps must pass the **-40℃ low temperature start-up test**, and use magnesium-aluminum alloy radiators and silicone seals to prevent condensed water from freezing.
Energy efficiency optimization: Choose 120-150lm/W high-efficiency products to reduce the load of heat on the refrigeration system.
Explosion-proof area:
Certification mandatory: Chemical workshops or flour warehouses require Ex d/e explosion-proof certification, and the compressive strength of the lamp housing must be ≥1MPa to avoid explosions caused by sparks.
Ⅱ. Technical parameter matching: priority ranking of performance indicators
1. Core optical parameters
Luminous flux and uniformity:
Luminous flux needs to be calculated in combination with the height of the space, formula:
Number of lamps = (target illumination × area) / (single lamp flux × utilization coefficient × maintenance coefficient)
(Utilization coefficient: 0.6-0.8; maintenance coefficient: 0.7-0.8)
Uniformity requirements: U0≥0.7 in the working area, U0≥0.5 in the adjacent area, to avoid visual fatigue.
Light distribution curve design:
Warehouse shelves: Batwing light distribution is used, and the light is distributed in an elliptical shape to reduce shadows between shelves;
Sports hall: Narrow-angle light distribution (30°-60°) is used to accurately cover the competition area and avoid glare in the audience seats.
2. Intelligent control function
Dynamic dimming:
The logistics warehouse uses microwave radar sensors to achieve "full brightness when people come (100% power), dimming when people leave (30% power)", saving 30%-50% energy.
The stadium supports the DALI protocol, and can preset the competition mode (high color temperature), training mode (medium color temperature), and cleaning mode (low brightness).
IoT integration:
Access to LoRa or WiFi network, remotely monitor the status of lamps (such as remaining life, overheating warning), and adapt to unmanned management needs.
Ⅲ. Environmental adaptation design: Reliability solutions for extreme conditions
1. Protection and heat dissipation system
Protection level selection:
Dusty environment (such as cement plant): IP66 protection, double silicone seal ring is used at the joint of the lamp;
Wet environment (such as cold chain warehouse): IP67 protection, power module is potted with waterproof glue, and can withstand high-pressure washing.
Heat dissipation technology upgrade:
The magnesium-aluminum alloy fin heat sink is used, and the heat dissipation area is increased by 40% compared with traditional aluminum profiles, ensuring that the chip temperature is ≤75℃ under the heat flux density of 50W/㎡.
Case: A UFO lamp with air guide groove is used in a certain automobile factory workshop. At an ambient temperature of 40℃, the light decay rate is 60% lower than that of ordinary lamps.
2. Earthquake resistance and stability
Mechanical structure:
The elastic shock-absorbing bracket is used at the connection between the lamp body and the hook, which can withstand 10G impact (equivalent to the impact force of a car collision at 60km/h), suitable for production lines with frequent vibrations.
Wide voltage adaptation: AC100-277V input, the power module has passed the surge protection test (4kV) to avoid voltage fluctuations and burnout.
IV. Energy efficiency certification and life cycle cost
1. Authoritative certification screening
DLC 5.1 certification:
The light efficiency must be ≥100lm/W, and the 50,000-hour light decay must be ≤30% as verified by the IES LM-80 report to ensure long-term energy efficiency.
Premium certification requires UGR≤28 (High-Bay category) to effectively control glare.
Industry-specific certification:
The food industry requires NSF/ANSI 169 certification, and the lighting materials meet FDA food contact standards;
The North American market prefers UL certification, and the European market requires ENEC certification to ensure compliance.
2. Cost-benefit analysis
Initial investment comparison:
The purchase cost of a traditional metal halide lamp (400W) is about $50/lamp, and that of a UFO High Bay Light (100W) is about $150/lamp, but the latter has a lifespan six times that of the former.
Long-term energy-saving benefits:
Take a 1,000-warehouse as an example. After switching to UFO lamps, the annual electricity bill drops from $15,000 to $3,800, saving more than $50,000 in electricity bills within five years, which completely covers the purchase premium.
What are the differences in performance and price between different brands and models of UFO High Bay Light?
The differences in performance and price between different brands and models of UFO High Bay Light are essentially a comprehensive reflection of technical routes, market positioning and scene adaptation. The following is an analysis from three dimensions: technical core, price stratification, and scene adaptation, combined with the latest industry data and typical cases:
I. Technical core differences: intergenerational competition in light efficiency, heat dissipation, and intelligent control
1. Light efficiency and optical design
International brands:
Sylvania ValueLED UFO 2A: 200W model luminous flux 26,000lm, luminous efficiency 130lm/W, DLC 5.1 Premium certification, suitable for high-space uniform lighting (such as warehouse shelf area illumination ≥300lux).
Philips GreenPerform G5: 170W model luminous flux 30,000lm, using bat wing light distribution curve, U0 uniformity ≥0.7, suitable for stadium competition area (horizontal illumination ≥1500lux).
Domestic brands:
Jiangjing Lighting NSF-Optical Select: supports 60°-105° continuous dimming, single lamp covers warehouse high shelves (narrow angle) and production lines (wide angle), reducing 80% of inventory SKUs.
TREONYIA 100W: luminous efficiency 140lm/W (industry leading), but the color rendering index Ra is only 80, suitable for logistics warehouses with low color requirements.
2. Heat dissipation and reliability
High-end solutions:
Jiangjing Lighting: magnesium-aluminum alloy fin heat sink + air guide groove, chip temperature ≤75℃ under 40℃ environment, IP66 protection level, passed -40℃ low temperature start test.
LEONLITE 200W: die-cast aluminum housing + multiple sets of heat sinks, supports -40℉ to 122℉ wide temperature operation, 50,000 hours of life.
Economical solution:
Sunco 150W: plastic shell + basic heat dissipation design, IP65 protection, life of 30,000 hours, suitable for non-extreme environments (such as ordinary workshops).
3. Intelligent control and scalability
High-end functions:
Philips GreenPerform G5: supports DALI-2 protocol, can be connected to the Interact IoT system, and realizes multi-scene presets (such as competition mode/cleaning mode).
ACE Lighting STP series: plug-and-play microwave radar sensor, supports Zigbee mesh network, automatically reduces to 30% brightness when people leave, and saves 50% energy.
Basic functions:
XSY Lighting Star 4 Pro: only supports 0-10V dimming, no IoT integration, suitable for small and medium-sized warehouses with limited budgets.
Ⅱ. Price stratification: a gradient market from economical to high-end customization
1. Economical ($30-$100/lamp)
Representative models: Sunco 150W ($30/lamp), TREONYIA 100W ($40/lamp)
Performance characteristics:
Luminous efficiency 100-120lm/W, luminous flux 15,000-20,000lm, Ra≥70, IP65 protection.
Typical scenarios: ordinary warehouses, workshop passages, annual electricity bill savings of about $1,000/lamp (compared with metal halide lamps).
Limitations: simple heat dissipation design, life span 3-5 years, no intelligent functions.
2. Mid-range ($100-$300/light)
Representative models: LEONLITE 200W ($129.99/light), Jiangjing Lighting NSF-Optical Select ($150/light)
Performance characteristics:
Luminous efficiency 130-140lm/W, luminous flux 26,000-30,000lm, Ra≥80, IP66 protection.
Intelligent function: 0-10V dimming or basic sensor, suitable for food processing plants (NSF certification required), cold chain warehouses (-20℃ tolerance).
Cost-effectiveness advantage: 5-year electricity bill savings of more than $5,000/light, covering the purchase premium.
3. High-end ($300-$800/lamp)
Representative models: Philips GreenPerform G5 ($350/lamp), Sylvania ValueLED UFO 2A ($200/lamp)
Performance characteristics:
Luminous efficiency 140-150lm/W, luminous flux 30,000-50,000lm, Ra≥90, IP69K protection (ACE Lighting).
Smart functions: DALI-2, Zigbee, IoT integration, suitable for airport cargo areas, smart factories (need to be linked with MES system).
Typical case: A car factory uses Philips lamps, optimizes lighting and production line rhythm through the Interact system, and improves overall energy efficiency by 25%.
How to determine the power and luminous flux of the UFO High Bay Light required for a specific place?
To determine the power and luminous flux of the UFO High Bay Light (UFO type high ceiling lamp) required for a specific place, it is necessary to combine the physical characteristics of the place, lighting requirements and lamp performance parameters for comprehensive calculation. The core is to ensure that the lighting effect meets the functional requirements (such as brightness uniformity, clarity) while avoiding energy waste or insufficient lighting. The following is a systematic analysis method and steps:
1. Clarify the core premise: understand the relationship between power and luminous flux
Luminous flux (unit: lumen, lm): an indicator of the total luminous amount of a lamp, directly determines the "total amount" of lighting, and is the core parameter for judging brightness.
Power (unit: Watt, W): reflects the energy consumption of the lamp, and the ratio to the luminous flux (luminous efficiency, lm/W) reflects the energy saving of the lamp (e.g. 150lm/W means 150 lumens of light per watt of electricity).
Key logic: first determine the required luminous flux, and then combine the luminous efficiency to infer the appropriate power (rather than directly selecting by power to avoid misjudgment due to differences in luminous efficiency).
2. Step 1: Analyze the basic parameters of the venue
It is necessary to clarify the 3 core physical characteristics of the venue, which directly affect the luminous flux demand:
Venue area (S, unit: m²)
That is, the total area of the area that needs to be illuminated (e.g. warehouse length 50m × width 20m = 1000m²).
Installation height (H, unit: m)
The height of the lamp from the ground (e.g. 8m in factory workshop, 12m in logistics warehouse, 15m in gymnasium).
The higher the height, the longer the light propagation distance, the more obvious the light decay, and a higher luminous flux is required to offset the decay.
Place use and environment
Functional requirements: such as high definition in precision workshops, basic identification in warehouses, and shadow-free lighting in gymnasiums.
Environmental conditions: whether it is dusty and humid (affecting the maintenance factor of lamps), wall/ceiling reflectivity (such as high reflectivity of white walls, which can improve light utilization).
3. Step 2: Determine the target illumination standard (E, unit: lux)
Illuminance (lux) is the luminous flux received per unit area (1lux=1lm/m²), which directly determines whether the brightness is sufficient. The illumination standards for different places can refer to national or industry specifications (such as GB 50034-2013 "Architectural Lighting Design Standard"):
| Type of place | Typical illumination requirements (lux) | Description |
|---|---|---|
| Ordinary warehouse (inventory) | 30-50 | Just meet the cargo identification |
| Logistics sorting area | 100-200 | Need to quickly identify labels/barcodes |
| Machining workshop | 200-300 | Avoiding operational errors |
| Precision assembly workshop | 300-500 | Need to clearly distinguish details |
| Stadium (competition) | 500-1000 | Ensure the field of vision for athletes and spectators |
Note: High illumination requirements (such as precision workshops) need to pay attention to the color rendering index (Ra≥80) at the same time to avoid judgment affected by color distortion.
4. Step 3: Calculate the required total luminous flux (Φ total)
The total luminous flux is the "total amount demand" to meet the illumination of the entire venue, and 2 correction factors need to be considered:
Formula:
Φ total = (illuminance standard E × venue area S) ÷ (utilization factor CU × maintenance factor MF)
Utilization factor (CU): reflects the effective utilization rate of the light output of the lamp after being reflected by the wall and ceiling (the contribution of non-direct light).
Reference for values:
High-reflection environment (white wall, light-colored ceiling): 0.6-0.7;
Medium-reflection environment (gray wall, ordinary ceiling): 0.4-0.5;
Low-reflection environment (black wall, no ceiling): 0.2-0.3.
Maintenance factor (MF): Consider the light decay caused by dust accumulation and aging during the use of lamps (usually 0.7-0.8).
Take 0.7 for dusty environment (such as cement plant) and 0.8 for clean environment (such as electronic workshop).
5. Step 4: Determine the luminous flux and quantity of a single lamp
Calculate the luminous flux required for a single lamp:
Assuming that N lamps are planned to be installed, the luminous flux of a single lamp Φ single = Φ total ÷ N.
Preliminary estimation of N: According to the installation height and the beam angle of the lamp (the common beam angle of UFO lamp is 60°-120°), the higher the height, the larger the coverage area of a single lamp (for example, at a height of 8m, a single lamp with a beam angle of 120° can cover about 20-30m²).
Combined with the light effect to reverse the power:
Power P = Φ single ÷ light effect (lm/W).
The light effect of the current mainstream UFO lamp: ordinary brands 120-140lm/W, high-quality brands 150-180lm/W (energy-saving type can reach 200lm/W).
6. Case demonstration: Calculation of a 1000㎡ logistics warehouse
Basic parameters:
Area S=1000m², installation height H=10m, purpose is cargo storage (illuminance E=50lux).
Environment: white wall (high reflection), CU=0.6; ordinary dust environment, MF=0.7.
Calculate the total luminous flux:
Φ total = (50lux × 1000m²) ÷ (0.6 × 0.7) ≈ 50000 ÷ 0.42 ≈ 119048 lm.
Determine the number of lamps and single lamp parameters:
Assuming that 20 lamps are installed, the single lamp luminous flux Φ single = 119048 ÷ 20≈5952 lm.
If a lamp with a luminous efficiency of 150lm/W is selected, the power P=5952 ÷ 150≈40W.
Verification: At a height of 10m, a UFO lamp with a 40W (≈6000lm) and a beam angle of 120° can cover about 50m² (1000÷20=50), matching the demand.
7. Key supplement: Correction of the effect of installation height
The higher the height, the more significant the light attenuation, and the luminous flux needs to be increased:
Below 8m: the above calculation is sufficient;
10-15m: the single lamp luminous flux needs to be increased by 20%-30%;
Above 15m: more than 50% needs to be increased (or choose narrow beam angle lamps to concentrate the light).
What are the differences and advantages and disadvantages between UFO mining lamps and traditional mining lamps?
UFO mining lamps (i.e. UFO-type LED high bay lights) and traditional mining lamps (mainly gas discharge lamps such as metal halide lamps and high-pressure sodium lamps, including some early incandescent lamps and fluorescent lamps) have essential differences in technical principles, structural design, and performance, and their advantages and disadvantages are also significantly differentiated due to technical characteristics. The following is an analysis from two aspects: core differences and their respective advantages and disadvantages:
1. Core differences: comprehensive iteration from technology to design
The difference between UFO mining lamps and traditional mining lamps is essentially the generational difference between "LED technology" and "traditional light source technology", which is specifically reflected in 6 dimensions:
| dimensions | UFO mining lamps | Traditional mining lamps (taking metal halide lamps as an example) |
|---|---|---|
| Light source type | LED (light-emitting diode) is used as the light source, which is a solid-state light source | Use gas discharge light sources (such as metal halide lamps, high pressure sodium lamps) or thermal radiation light sources (incandescent lamps) |
| Structural design | Integrated sealed design (similar to the appearance of a flying saucer), integrated light source, drive, and heat dissipation system | Split design, consisting of independent components such as bulbs, ballasts, and lamp housings |
| Energy consumption and light efficiency | High light efficiency (120-200lm/W), low energy consumption | Low light efficiency (metal halide lamps are about 60-80lm/W, high pressure sodium lamps are 80-100lm/W), high energy consumption |
| Startup and response | Instant start (≤0.1 seconds), no flicker | Preheating is required (about 5-10 minutes for metal halide lamps), and there is obvious flicker (when not equipped with electronic ballast) |
| Heat dissipation method | Active heat dissipation (fin type, heat pipe type), integrated design with light source | Passive heat dissipation (relying on natural heat dissipation of the shell), heat source dispersion (both the bulb and the ballast generate heat) |
| Protection level | High (IP65-IP66 common), strong dust and water resistance | Low (mostly below IP54), poor sealing, easily affected by the environment |
2. Comparison of advantages and disadvantages: trade-offs from short-term costs to long-term value
1. Advantages and disadvantages of UFO mining lamps
Core advantages:
Extreme energy saving, lower long-term costs
The light efficiency is 2-3 times that of traditional metal halide lamps (such as 100W UFO lamp brightness ≈ 250W metal halide lamp). Taking a 1000㎡ factory as an example, the annual electricity bill can be reduced by 50%-70% after replacement.
Case: A logistics warehouse replaced 50 400W metal halide lamps with 50 150W UFO lamps, saving about (400-150) × 50 × 12 hours × 365 days = 54,750 kWh of electricity per year. At 1 yuan per kWh, it saves 54,000 yuan per year.
Extremely long life, maintenance cost close to zero
The life of LED light source can reach 50,000-100,000 hours (11-22 years if used 12 hours a day), and there are no vulnerable parts (ballasts and filaments of traditional lamps are high-frequency failure points). Data from a certain automobile workshop showed that after replacing the UFO lamp, the annual maintenance times dropped from 12 times to 0 times.
Better lighting experience, adapted to industrial scene requirements
High color rendering index (Ra≥70-80), can truly restore the color of goods and equipment (such as electronic component sorting, precision assembly), traditional metal halide lamp Ra is only 50-60, which is easy to cause color difference misjudgment.
Good light uniformity (optimized by lens or reflector cup), no "spot" and "shadow" problems of traditional lamps, suitable for warehouse sorting and workshop operation.
Instant start + no flicker, avoid the "start-up blind spot" caused by preheating of traditional lamps, and also reduce workers' visual fatigue (stroboscopic light can easily cause headaches and distraction).
Strong environmental adaptability, wider range of applications
Integrated sealing design + high protection level (IP65 and above), can work stably in dusty (cement plant), humid (food processing workshop), high temperature (metallurgical plant) environment; traditional lamps have poor sealing, dust and water vapor easily enter the ballast, and the failure rate is high.
Main disadvantages:
High initial purchase cost
The price of a single lamp is 3-5 times that of a metal halide lamp with the same brightness (such as 150W UFO lamp is about 300-500 yuan, 400W metal halide lamp is about 100-150 yuan), which is a threshold for companies with tight short-term budgets.
The light efficiency is slightly reduced in low temperature environments
In extreme low temperature environments below - 20℃ (such as cold storage), the LED luminous flux may decrease by 5%-10% (need to select a low temperature adaptation model), while metal halide lamps are less affected by temperature.
2. Advantages and disadvantages of traditional industrial and mining lamps
Core advantages:
Low initial purchase cost
The price of a single lamp is low, suitable for scenes with limited budget, short-term use (such as temporary factories) or extremely low requirements for light quality (such as rough warehouses).
Mature technology and stable supply chain
The production and maintenance system is complete, accessories such as ballasts and bulbs are easy to purchase, and traditional electricians are more familiar with the installation and maintenance process.
Slightly better stability in high temperature environment
Metal halide lamps have a slower light decay in an environment of 30-40℃ (LED light decay accelerates at high temperature and needs to rely on heat dissipation design to offset).
Main disadvantages:
Extremely high energy consumption, heavy long-term electricity bill
Based on 1000㎡ factory building with 12 hours of lighting per day, the annual electricity bill of 50 400W metal halide lamps is ≈50×400×12×365÷1000×1 yuan = 87600 yuan; while 50 150W UFO lamps only cost 32850 yuan, a difference of 54,000 yuan per year.
Short life and high maintenance frequency
The life of metal halide lamps is only 10,000-20,000 hours (2-4 years for 12 hours a day), and the ballast needs to be replaced every 1-2 years on average. The cost of maintaining a single lamp is about 50 yuan each time (including labor), and the annual maintenance fee for 50 lamps is about 2,500-5,000 yuan.
Poor lighting experience affects work efficiency
Low color rendering (Ra≤60), cargo labels and equipment details are difficult to see (such as increased error rate in logistics sorting);
Slow start (5-10 minutes to reach rated brightness), restart after sudden power failure requires waiting, affecting continuous operation;
Obvious flicker (especially when equipped with inductive ballast), long-term exposure can easily cause worker eye fatigue and increase the rate of operational errors.
Poor environmental protection, there are safety hazards
Metal halide lamps and fluorescent lamps contain harmful substances such as mercury, and improper disposal after disposal will pollute the environment; and the surface temperature is high during operation (up to 200°C or more), and it is easy to cause fire when close to combustibles (such as cartons and fabrics).
What types of LED UFO mining lamps are there?
LED UFO mining lamps can be classified according to heat dissipation methods, light distribution methods, control methods, etc., as follows:
Classification by heat dissipation method:
Fin-type heat dissipation LED UFO mining lamp: uses high-precision fully automated equipment to form an aluminum fin heat dissipation shell in one go. By increasing the heat dissipation area, the heat generated by the light source is quickly dissipated into the air, effectively ensuring the life of the light source and power supply. It is currently a more common type.
Heat pipe heat dissipation LED UFO mining lamp: using heat pipe technology, the heat is quickly transferred from the light source to the radiator, with higher heat dissipation efficiency. Compared with fin heat dissipation, it can better control the temperature of the lamp at the same power, and is suitable for places with high power or high heat dissipation requirements.
Classification by light distribution method:
Narrow-angle light distribution LED UFO mining lamp: usually the beam angle is about 60 degrees, suitable for installation in places with high height, such as 15-30 meters of industrial plants, can focus light on specific areas, and improve local lighting brightness.
Medium-angle light distribution LED UFO mining lamp: the beam angle is generally about 90 degrees, suitable for installation at a height of 8-15 meters, can provide relatively uniform lighting within a certain range, taking into account the lighting range and brightness.
Wide-angle light distribution LED UFO mining lamp: the beam angle can reach about 120 degrees, suitable for installation at a height of less than 8 meters, can cover a larger area, make the light distribution more uniform, and reduce lighting dead angles.
Classification by control method:
Ordinary constant current drive LED UFO mining lamp: It adopts constant current and constant voltage control, has a wide applicable voltage, can stably drive the lamp to emit light, and ensure the normal operation and life of the lamp. It is the most basic type.
Dimmable LED UFO mining lamp: It supports dimming methods such as 0-10V dimming. It can adjust the light brightness according to actual needs, achieve energy saving and meet the lighting needs of different scenes, such as reducing the brightness when there are fewer people or at night.
Inductive LED UFO mining lamp: Equipped with motion sensor, it can automatically control the switch or brightness adjustment of the lamp according to human activities or object movement in the environment. It is often used in warehouses, garages and other places where lighting is required when there are people, and automatic energy saving can be achieved when no one is there.
Intelligent control LED UFO mining lamp: It supports intelligent control methods such as zigbee mobile phone APP control dimming. Users can remotely control the switch, brightness adjustment, color temperature adjustment, etc. of the lamp through the mobile phone APP, which is convenient for management and operation. It is suitable for large commercial places or industrial plants.
Classification by power:
Low-power LED UFO mining lamp: generally with a power between 50W-100W, suitable for places with low requirements for lighting brightness or small space, such as small warehouses, local lighting in workshops, etc.
Medium-power LED UFO mining lamp: usually with a power between 100W-200W, which is a more commonly used specification and can meet the lighting needs of most industrial plants, supermarkets, indoor gymnasiums and other places.
High-power LED UFO mining lamp: with a power of more than 200W, it is mainly used in large industrial plants, logistics centers and other places with high height and large area, and can provide sufficient brightness and lighting range.
What are the lighting requirements for LED UFO mining lamp sites?

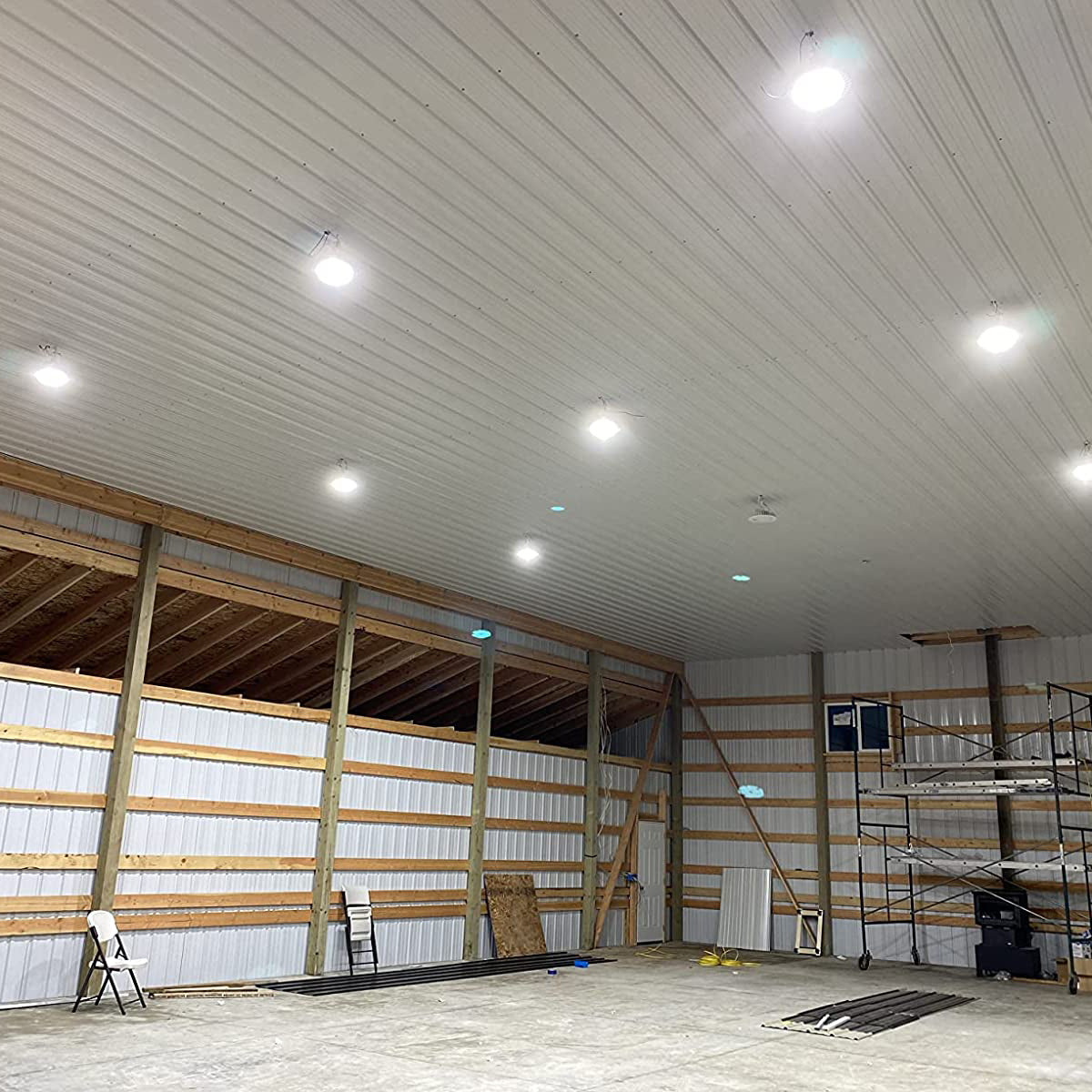

LED UFO mining lamps are mainly used in high-space and large-area places such as industrial plants, warehouses, logistics centers, gymnasiums, and large supermarkets. Their lighting requirements need to be determined in combination with multiple factors such as the function of the place, operational requirements, and safety regulations. The details are as follows:
1. Basic lighting parameter requirements
Illuminance is up to standard and uniform
Different places have clear standards for average illumination:
Ordinary workshops and warehouses: 300-500 lux (meet basic operations and passage);
Precision processing workshops and assembly areas: 500-1000 lux (fine operation is required to avoid errors);
Large logistics centers and loading and unloading areas: 300-500 lux (need to identify cargo labels and quickly move);
Gymnasiums: 500-1500 lux (depending on the type of sports, such as basketball and badminton require higher illumination).
Illuminance uniformity (minimum illumination / average illumination) must be ≥0.7 to avoid visual fatigue or operational errors caused by excessive differences in light and dark.
Appropriate color temperature and color rendering index
Color temperature: 4000K-6500K (neutral white to cold white) is recommended for industrial sites to improve attention and work efficiency; 5000K-6500K can be selected for warehouses and logistics areas to enhance the clarity of cargo identification.
Color rendering index (Ra): ≥60-80, of which Ra in precision processing and quality inspection areas should be ≥80 to ensure accurate identification of object colors (such as part color difference, label color).
Beam angle matches installation height
High space (above 15 meters): select a narrow angle (about 60°) beam angle to avoid light dispersion and ensure ground illumination;
Medium space (8-15 meters): select a medium angle (about 90°) to balance the lighting range and brightness;
Low space (below 8 meters): select a wide angle (about 120°) to cover a larger area and reduce lighting blind spots.
2. Safety and durability requirements
Protection level (IP)
Wet and dusty places (such as food processing workshops, outdoor warehouses): IP65 and above are required to prevent dust intrusion and water spray damage;
Ordinary dry workshops: IP54 and above are sufficient to meet basic dust and moisture resistance.
Ability to resist environmental interference
Temperature resistance: Need to adapt to ambient temperatures of -20℃ to 50℃ (some extreme places require -30℃ to 60℃);
Vibration resistance: Industrial plants (such as machine tool workshops, heavy industrial workshops) require lamps with vibration resistance design to avoid loosening of components due to vibration during equipment operation.
Electrical safety
Comply with national electrical standards (such as GB7000 series), with overcurrent, overvoltage, and short-circuit protection functions;
The wiring method needs to adapt to the power supply system of the site (such as three-phase electricity, single-phase electricity) to avoid voltage instability affecting life.
3. Energy saving and intelligent control requirements
Energy efficiency level
Prioritize products with high energy efficiency level (such as level 1 and level 2), and the luminous efficiency must be ≥100 lm/W (i.e., the luminous flux generated per watt of power must be ≥100 lumens) to reduce long-term operating electricity costs.
Intelligent adaptability
Large venues (such as logistics centers and gymnasiums) are recommended to support dimming (0-10V dimming), induction control (human body induction, radar induction) or intelligent networking (ZigBee, WiFi) to achieve "lights on when people come, lights off/lower when people leave", further saving energy;
Need to cooperate with the venue's lighting control system (such as a centralized management platform) to facilitate unified adjustment and fault monitoring.
4. Additional requirements for special places
Explosion-proof places (such as chemical workshops and gas stations): LED UFO mining lamps with explosion-proof certification (Ex) must be selected to avoid sparks and dangers caused by the operation of the lamps;
Clean places (such as pharmaceutical workshops and electronic clean rooms): The lamps must have no sanitary dead corners and be easy to clean, with a protection level ≥ IP66 to prevent dust accumulation and microbial growth;
High-temperature places (such as metallurgical workshops): The heat dissipation design (such as heat pipe heat dissipation) must be strengthened to ensure that the life of the lamps is not affected in high-temperature environments.
In short, the lighting requirements of LED UFO mining lamps need to be combined with specific parameters such as the height, area, operation type, and environmental conditions of the place. By calculating the illumination requirements, matching the beam angle and power, and verifying the safety protection level, the lighting effect of "sufficient brightness, uniform distribution, safety and durability, energy saving and high efficiency" can be finally achieved.
Conclusion
Conclusion: The essence of UFO High Bay Light is "the lighting grammar of industrial scenes"
Its "UFO" shape is the reshaping of form by function - using the least structure to achieve the maximum performance; its "High Bay" positioning is the adaptation of technology to the scene - allowing light to complete its mission in high space "accurately, efficiently and economically". From warehouse shelves to factory assembly lines, from gymnasium stadiums to airport cargo areas, the popularization of this type of lamp is not only an update of lighting equipment, but also an underlying upgrade of "energy efficiency" and "production safety" in industrial spaces.
It may not have the mystery of "alien technology", but it is undoubtedly the optimal solution for high-space lighting written by humans using industrial wisdom.
