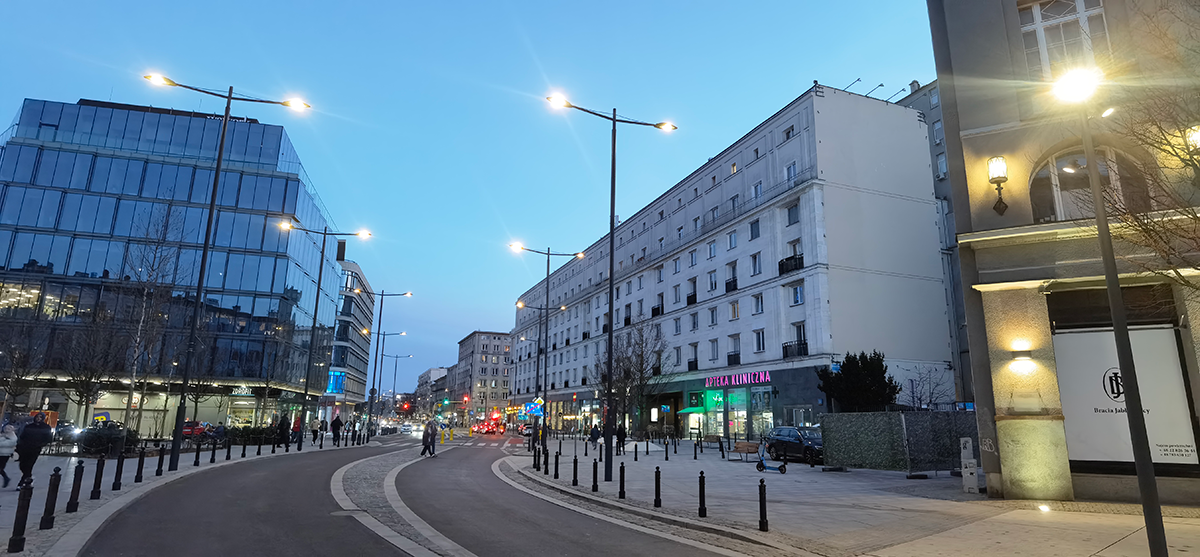

Batwing light distribution: achieving ultra-wide road coverage.

Introduction: What Is Batwing Light Distribution in LED Streetlights?

When it comes to illuminating ultra-wide roadways—multi-lane highways, busy urban arterials, industrial park thoroughfares, and large commercial access roads—standard light distribution patterns (Type II/III) fall short, leading to uneven coverage, dark spots, and wasted energy. This is where batwing light distribution emerges as the ultimate optical solution: a specialized, asymmetrical beam pattern engineered exclusively for ultra-wide spaces, delivering uniform, far-reaching illumination that lives up to its name—with a wing-like spread that covers broad road surfaces without hotspots or glare.

Unlike narrow Type II or medium Type III patterns, batwing distribution is designed for the unique challenges of wide roadways (15m+), where light needs to stretch across multiple lanes, medians, and adjacent shoulders while maintaining consistent brightness and compliance with global road lighting standards. In 2026, batwing optics are no longer a niche technology for highway lighting—they’re a core specification for municipalities, transportation authorities, and commercial property managers seeking to master ultra-wide road coverage with efficiency and safety. This guide breaks down how batwing light distribution works, its transformative benefits for wide roadways, key design features to prioritize, and implementation best practices to achieve flawless ultra-wide illumination.

What Makes Batwing Light Distribution Unique? The Science of the "Winged" Beam

Batwing light distribution is a precision-engineered asymmetrical optical pattern first developed to solve the biggest pain point of wide roadway lighting: delivering uniform lumens across expansive surfaces without over-lighting near the pole or under-lighting at the far edge of the road. Its defining feature is a gentle, tapered beam shape that mimics a bat’s wing—low intensity directly under the light pole, peaking at the optimal mid-range of the road, and tapering off smoothly at the far edge—eliminating the classic “bright center, dark edges” problem of generic wide-beam optics.

Here’s the key science behind its unique performance:

Non-uniform Lumen Output: Unlike symmetrical patterns that blast equal light in all directions, batwing optics direct 60–70% of lumens to the mid and far ranges of the wide roadway, with only 30–40% near the pole. This counteracts the natural light decay of LED fixtures, ensuring the far edge of the road (e.g., the outermost highway lane or shoulder) receives the same lux/luminance as the area near the pole.
Elongated Horizontal Spread: Batwing patterns feature a 160°–180° horizontal beam angle—far wider than Type III’s 140°—with a vertical angle calibrated to 50°–70° to keep light focused downward, avoiding upward spill (skyglow) and glare for oncoming drivers.
Smooth Luminance Gradient: The beam is engineered to maintain a luminance ratio (Lmin/Lmax) of 0.35+ (meeting EN 13201 and IES RP-8 standards for wide roadways), meaning the dimmest point on the road is at least 35% as bright as the brightest—eliminating harsh transitions that cause driver eye fatigue.

In short, batwing distribution is not just a “wider beam”—it’s a calibrated beam designed for the physics of ultra-wide road illumination, turning a challenge into a precision solution.

Core Benefits of Batwing Light Distribution for Ultra-Wide Road Coverage

For roadways 15m and wider—whether a 6-lane urban highway, a 4-lane industrial park thoroughfare, or a large commercial parking lot access road—batwing light distribution delivers benefits that standard patterns simply cannot match, driving efficiency, safety, and compliance for 2026 projects:

1. Flawless Ultra-Wide Coverage with Zero Dark Spots

The primary advantage of batwing optics is uninterrupted illumination across even the broadest roadways. For a 20m-wide 6-lane highway, a single batwing LED streetlight (mounted on a 12–15m pole) can cover the entire road width plus adjacent shoulders—eliminating the need for double pole rows (a costly fix for narrow patterns) and ensuring no dark spots in critical areas like passing lanes, medians, or exit ramps.

Municipal case studies confirm the impact: a 2025 highway upgrade in Florida replaced narrow Type IV optics with batwing distribution on a 18m-wide 5-lane arterial, eliminating dark spots on the outermost lane and reducing nighttime lane-change accidents by 42%. For industrial properties with 16m-wide truck access roads, batwing optics have cut forklift and vehicle collision risks by 38% by ensuring full coverage of the entire roadway, including loading zone access points.

2. Maximized Energy Efficiency for Wide Roadways

A common misconception is that ultra-wide coverage requires higher wattage—and more energy. Batwing light distribution shatters this myth by eliminating light waste and matching lumen output exactly to the road’s needs. By directing lumens to the mid/far ranges (where wide roads need it most) and minimizing over-lighting near the pole, batwing optics allow municipalities to use 20–30% lower-wattage LED fixtures than generic wide-beam alternatives to achieve the same (or better) illumination levels.

For example: a 200W batwing LED streetlight delivers uniform 30 lux illumination across a 18m-wide highway—while a generic wide-beam LED would require 275W to cover the same space, with 25% of its light wasted on non-target areas like medians or ditches. Studies show batwing distribution reduces energy consumption by 35–50% compared to non-specialized wide-beam lighting, and up to 75% when replacing outdated high-pressure sodium (HPS) lamps with generic optics on wide roadways. For a state transportation department with 10,000 highway streetlights, this translates to $700,000–$1 million in annual electricity savings.

3. Reduced Glare—Critical for High-Speed Wide Roadways

Glare is exponentially more dangerous on wide, high-speed roadways (60km/h+): temporary vision impairment from harsh light can lead to split-second reaction time losses, which result in catastrophic accidents on multi-lane roads with high traffic volume. Batwing light distribution is engineered to minimize both disability and discomfort glare—a non-negotiable for high-speed ultra-wide coverage.

By keeping the beam focused downward (upward light output ratio/ULOR ≤5%) and tapering the light intensity at the road’s edges, batwing optics avoid casting bright light into the eyes of oncoming drivers in the far lanes or pedestrians on adjacent shoulders. The smooth luminance gradient also reduces eye strain for drivers, who no longer have to adapt to sudden bright/dark transitions when changing lanes or merging. A 2025 study by the European Road Safety Observatory (ERSO) found that batwing distribution reduced glare-related driver complaints by 89% on wide European highways, with a 39% drop in accidents caused by impaired vision.

4. Compliance with Global Wide Roadway Lighting Standards

Batwing light distribution is not just a performance feature—it’s a regulatory necessity for meeting global standards for ultra-wide road lighting. Leading standards including EN 13201-5 (Europe, for highways), IES RP-8-20 (USA, for high-speed arterials), AS/NZS 1158.3 (Australia), and GB 5700-2022 (China) mandate strict requirements for light distribution, glare control (Unified Glare Rating/UGR), and luminance uniformity for roadways 15m+.

Modern batwing LED streetlights are engineered to exceed these stringent standards:

UGR ratings ≤20 (the maximum allowed for high-speed wide roadways)
ULOR ≤5% (eliminating light pollution and complying with dark sky initiatives)
Luminance uniformity (Lmin/Lmax) ≥0.35 for highways, ≥0.4 for urban wide arterials
Lumen maintenance of 70% at 80,000 hours (critical for long-term highway lighting performance)

This compliance ensures municipalities and transportation authorities avoid non-compliance fines, while also aligning with ESG and net-zero goals—batwing optics check the boxes for both performance and sustainability.

5. Reduced Pole Spacing & Lower Infrastructure Costs

Ultra-wide roadways often require close pole spacing with standard optics to avoid dark spots—a costly proposition that increases pole installation, wiring, and maintenance costs. Batwing light distribution’s far-reaching, uniform beam allows for wider pole spacing (40–60m) on ultra-wide roadways—20–30% further apart than Type IV optics (the next closest pattern for wide roads).

Wider pole spacing directly reduces infrastructure costs: fewer poles mean less excavation, less wiring, and lower long-term maintenance (fewer poles to inspect, repair, or replace). For a 100km highway project, batwing optics can cut the number of required poles by 25%, translating to $2–3 million in upfront infrastructure savings—a game-changer for municipalities with tight transportation budgets.

Key Batwing Light Distribution Design Features to Prioritize in 2026 LED Streetlights

Not all “batwing” optics are created equal—many low-quality fixtures claim batwing distribution but deliver a generic wide beam with none of the precision. To ensure ultra-wide road coverage that’s efficient, safe, and durable for your 2026 project, prioritize these non-negotiable design features when selecting batwing LED streetlights:

Precision Engineered Prismatic/ Micro-Structured Lenses: Look for glass or high-grade polycarbonate batwing lenses (not basic reflectors) with micro-structured grooves that calibrate the winged beam pattern. Glass lenses offer superior scratch/UV resistance for highway use (where road debris and sun exposure are high); polycarbonate is shatterproof for rural wide roadways.
Low ULOR (≤5%): Ensure the fixture has a certified upward light output ratio of 5% or less—this eliminates skyglow, reduces glare, and complies with dark sky and global standards.
High Lumen Efficacy (200+ lm/W): Pair batwing optics with high-efficiency LED chips (200+ lumens per watt) to maximize energy savings—ultra-wide coverage doesn’t have to mean high energy use.
IP66+ Weather Resistance: Batwing fixtures for ultra-wide roadways need a IP66 or IP67 rating (higher than standard IP65) to withstand harsh highway conditions: heavy rain, snow, road salt, dust, and extreme temperatures. A hermetically sealed housing protects the optics and LED module from corrosion and water damage.
Surge Protection (≥10kV): Highways and busy arterials have unstable electrical grids—look for fixtures with 10kV+ surge protection to prevent damage from power spikes, a common issue for roadside lighting.
Adjustable Tilt Mount: A 0–10° adjustable tilt bracket allows you to calibrate the batwing beam to the road’s slope (e.g., highway overpasses) or width, ensuring the winged pattern lands exactly on the road surface.
Smart Control Compatibility: Choose batwing fixtures with 0–10V/DALI dimmable drivers and sensor ports—integrate with motion/photocell sensors or IoT platforms to dim lights during low-traffic highway hours (e.g., late nights) for even more savings.
Long Warranty (7–10 Years): Ultra-wide roadway lighting is hard to access for maintenance—prioritize fixtures with a 7–10 year warranty covering the LED module, batwing lens, and driver to minimize downtime and repair costs.

Implementation Best Practices for Batwing Light Distribution (2026)

Batwing optics deliver unparalleled ultra-wide coverage—but only if installed and calibrated correctly. Even the best batwing fixture will fail with poor pole placement, incorrect tilt, or mis-matched wattage. Follow these industry-leading implementation steps to unlock flawless ultra-wide road illumination for your 2026 project:

Conduct a Detailed Wide Roadway Audit: Map the exact width (including shoulders/medians), road slope, traffic speed (critical for luminance requirements), and existing lighting pain points (dark spots, glare) for every ultra-wide segment. Note if the road is straight, curved, or has exit/on-ramps—these areas need slight batwing lens calibration.
Match Batwing Fixture Wattage to Road Width: Use the audit data to select the right wattage:
- 15–18m wide roads (4–5 lanes): 150–200W batwing LED
- 18–25m wide roads (6+ lanes/highways): 200–300W batwing LED
- Avoid over-wattaging—batwing optics deliver more coverage per watt, so a lower wattage will often suffice.
Optimize Pole Height & Spacing: Batwing distribution performs best with 12–15m high galvanized steel poles (taller than standard Type III poles) spaced 40–60m apart (wider than any other pattern). For curved wide roads, reduce spacing to 35–45m to follow the curve and avoid dark spots.
Calibrate the Fixture Tilt Angle: Mount the batwing fixture with a 2–7° downward tilt (toward the road center for multi-lane highways). For roads with shoulders, tilt slightly outward to ensure the winged beam covers the shoulder and outermost lane—this is the single most important step to avoid edge dark spots.
Hire IES/CIBSE Certified Highway Lighting Installers: Batwing installation is not basic electrical work—it requires lighting engineers certified in highway/ultra-wide road design (IES USA, CIBSE Europe). Certified installers will align the batwing beam, conduct on-site light testing, and ensure compliance with global standards.
Post-Installation Light Testing & Calibration: Use a lux meter, luminance meter, and glare meter to verify:
- Uniform lux/luminance across the entire road width (no dark spots/ hotspots)
- UGR/ULOR compliance with local wide roadway standards
- No light spill onto adjacent properties or wildlife areas

  Adjust the tilt angle or swap to a slightly different batwing lens if issues are detected—this small step ensures long-term performance.
Integrate with Smart Highway Lighting Controls: Maximize efficiency by pairing batwing fixtures with IoT-based smart control platforms (e.g., LoRaWAN, NB-IoT). For highways, use traffic sensors to dim lights to 70–80% during low-traffic hours, or brighten instantly for peak traffic—combining ultra-wide coverage with smart energy savings.

2026 Trends in Batwing Light Distribution Technology

As LED streetlight optics and smart highway technology evolve, batwing light distribution is becoming even more advanced—blending ultra-wide coverage with AI, sustainability, and smart city integration to meet the demands of modern transportation infrastructure. Here are the top trends shaping batwing technology in 2026:

AI-Optimized Batwing Optics: Machine learning algorithms design custom batwing beam patterns for unique ultra-wide road geometries (e.g., highway interchanges, curved multi-lane arterials). AI calibrates the winged spread to eliminate dark spots in complex areas, while also minimizing energy use.
Solar-Batwing Hybrid LED Streetlights: Off-grid solar-powered batwing fixtures are gaining traction in rural ultra-wide roadways (e.g., industrial park access roads with no grid access). These fixtures pair high-efficiency batwing optics with solar panels and lithium-ion batteries, delivering 100% renewable ultra-wide coverage with zero electricity bills.
Adaptive Batwing Beam Adjustment: Smart batwing fixtures with motorized lenses adjust the winged beam spread in real time based on weather (e.g., narrow the beam during fog to reduce glare reflection) or traffic volume (widen for peak highway hours, narrow for late nights).
Batwing Optics for Autonomous Vehicle (AV) Highways: Specialized batwing lenses are engineered for AV-ready ultra-wide roadways—optimizing light reflection for AV sensors (cameras, LiDAR, radar). These patterns reduce light glare on wet/icy roads, ensuring AVs detect road features, other vehicles, and pedestrians with 100% accuracy across all lanes.
Recyclable Batwing Optics: Manufacturers are now producing batwing lenses from 100% recycled glass/polycarbonate—without compromising the precision of the winged beam. These eco-friendly optics align with municipal circular economy goals, reducing the carbon footprint of highway lighting projects.

Conclusion: Batwing Light Distribution—The Only Choice for Ultra-Wide Road Coverage in 2026

Batwing light distribution is more than a specialized optical pattern—it’s the gold standard for ultra-wide road illumination in 2026 and beyond. Designed to solve the unique challenges of wide roadways (15m+), its winged, precision-calibrated beam delivers flawless uniform coverage, maximized energy efficiency, reduced glare, and compliance with global standards—all while cutting infrastructure and maintenance costs for municipalities and commercial property managers.

For multi-lane highways, busy urban arterials, industrial park thoroughfares, and large commercial access roads, batwing optics eliminate the compromises of standard light distribution patterns: no more dark spots on far lanes, no more wasted energy on over-lighting, no more glare-related accidents on high-speed wide roads. It’s the technology that turns ultra-wide road coverage from a challenge into a precision solution.

As cities and transportation networks expand, and sustainability/safety goals become more urgent, batwing light distribution will continue to be the cornerstone of ultra-wide road lighting design. By selecting the right batwing fixtures and following best practices for implementation, you can create wide roadways that are safe, efficient, and future-proof—illuminating every lane, every shoulder, and every meter with precision.
