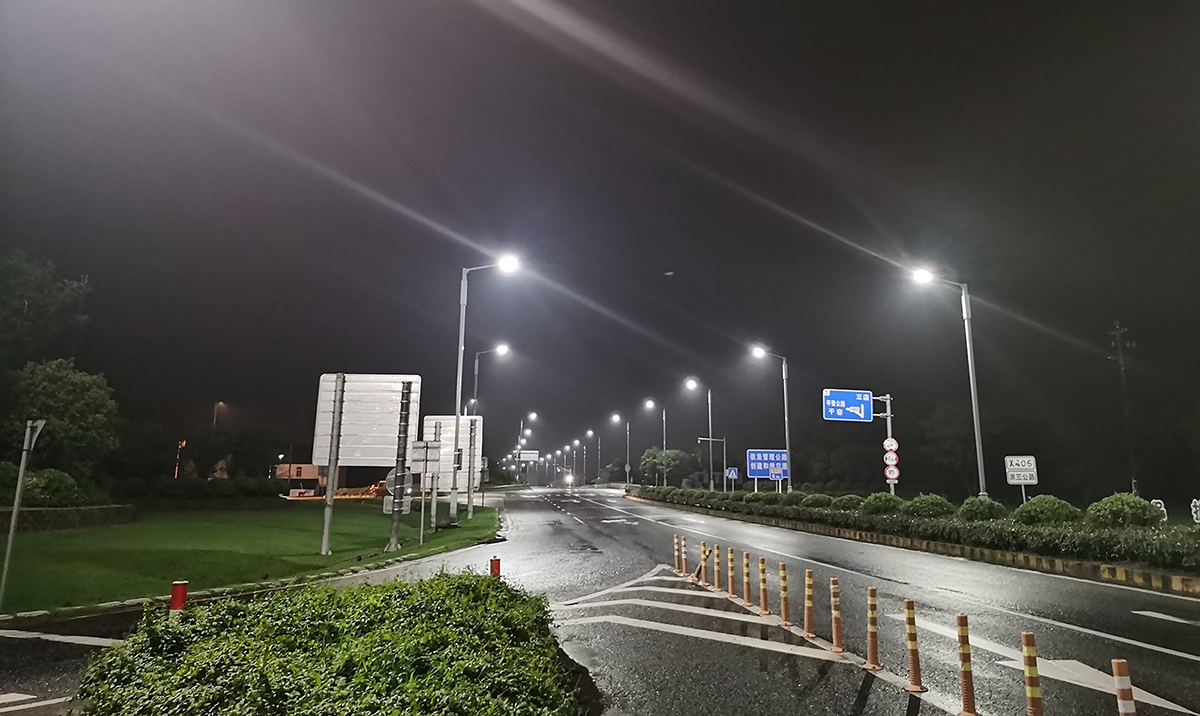

Introduction: What Are Type II/III Light Distribution Patterns in LED Streetlights?
Precision is everything in modern road lighting, and Type II and Type III light distribution patterns are the unsung heroes of targeted, efficient LED streetlight design. For municipalities, transportation engineers, and lighting specifiers, these ANSI/IESNA-defined optical patterns are the gold standard for illuminating roadways of all widths and traffic volumes—replacing one-size-fits-all symmetrical designs with tailored light distribution that aligns perfectly with real-world road geometry.
Unlike generic light spread that wastes lumens on non-target areas (e.g., grassy verges, buildings, the sky), Type II and Type III distributions are engineered to cast light in a controlled, elongated pattern that matches the length and width of specific road types—from narrow residential streets to medium-width suburban arterials. In 2026, these patterns are no longer just a technical specification; they’re a critical foundation for safe, energy-efficient, and compliant road lighting. This guide breaks down the key differences between Type II and Type III distribution, their core benefits for road lighting, how to select the right pattern for your project, and implementation best practices to unlock precise illumination.
Type II vs. Type III Light Distribution: Key Definitions & Differences
First defined by the IESNA (Illuminating Engineering Society of North America) (now part of the Illuminating Engineering Society, IES) and adopted as global ANSI standards, Type II through Type V light distribution patterns classify LED streetlight optics by their beam spread, coverage width, and intended road application. Type II and Type III are the most widely used for municipal and urban road lighting, designed for low-to-medium speed roadways where precision light control is paramount. Here’s their critical breakdown:
Type II Light Distribution
- Core Design: A narrow, symmetrical/near-symmetrical elongated beam that delivers primary illumination across a narrow coverage width (typically 1–1.5 times the height of the light pole).
- Beam Characteristics: A 120° horizontal beam spread with a focused vertical distribution, minimizing light spill to the sides and above the horizontal plane.
- Intended Use: Narrow roadways—residential streets (6–8m wide), alleyways, bike lanes, and pedestrian paths with single or double lanes and low traffic speeds (≤40km/h). Ideal for close pole spacing (20–30m) and low pole heights (6–8m).
Type III Light Distribution
- Core Design: A moderate-width, asymmetrical elongated beam (the most common asymmetrical pattern for road lighting) that covers a medium width (1.5–2.5 times the pole height)—the sweet spot for most suburban and urban roadways.
- Beam Characteristics: A 140° horizontal beam spread with a tapered vertical distribution, directing 80%+ of lumens onto the road surface and adjacent sidewalks, with minimal side spill.
- Intended Use: Medium-width roadways—suburban arterials (9–14m wide), residential collector roads, and urban side streets with 2–3 lanes and moderate traffic speeds (40–60km/h). Perfect for standard pole spacing (30–40m) and pole heights (8–10m).
Quick Comparison: Type II vs. Type III at a Glance
| Feature | Type II Distribution | Type III Distribution |
|---|---|---|
| Coverage Width | 1–1.5x pole height | 1.5–2.5x pole height |
| Ideal Road Width | 6–8m (narrow) | 9–14m (medium) |
| Typical Pole Height | 6–8m | 8–10m |
| Optimal Pole Spacing | 20–30m | 30–40m |
| Primary Application | Residential streets, bike lanes | Suburban arterials, urban collector roads |
| Traffic Speed Range | ≤40km/h | 40–60km/h |
The core takeaway: Type II is for narrow, slow roads, Type III for medium-width, moderate-speed roads—both are engineered for precision, not just light spread.
Core Benefits of Type II/III Light Distribution for LED Streetlights
Type II and Type III distribution patterns are the backbone of modern road lighting for a reason: they address the biggest pain points of traditional, generic lighting—wasted energy, glare, uneven illumination, and non-compliance. For 2026 municipal and commercial road lighting projects, their benefits are non-negotiable:
1. Unmatched Energy Efficiency & Zero Light Waste
The single biggest advantage of Type II/III distribution is targeted lumen delivery. These patterns direct 90%+ of the LED’s light output onto the intended road and pedestrian areas, eliminating the 25–40% light spill that plagues generic or symmetrical lighting designs. This means you can use a lower-wattage LED fixture to achieve the same (or better) illumination levels (lux/luminance) as a higher-wattage fixture with unregulated light spread.
For example: a 60W LED streetlight with Type II distribution delivers uniform 20 lux illumination on a 7m-wide residential street—while a generic 100W LED would be needed to reach the same lux level, with 35% of its light wasted on private property or the sky. Studies show Type II/III distribution reduces energy consumption by 30–50% compared to non-specified light spread, and up to 70% when replacing traditional high-pressure sodium (HPS) lamps with outdated optics. For a city with 40,000 residential/suburban streetlights, this translates to $600,000–$1 million in annual electricity savings.
2. Reduced Glare & Enhanced Nighttime Road Safety
Glare is the leading cause of nighttime road accidents, and Type II/III distribution patterns are engineered to minimize both disability and discomfort glare. By limiting side and upward light spill (upward light output ratio, ULOR ≤5%), these patterns avoid casting bright light into the eyes of oncoming drivers, pedestrians, or cyclists—eliminating temporary vision impairment and reduced reaction times.
The controlled beam spread also creates a low-glare, uniform light plane on the road surface, improving contrast sensitivity for drivers. This means road signs, potholes, pedestrians, and cyclists are far more visible—even in low-light conditions. Municipal case studies confirm the impact: a 2025 upgrade to Type III distribution LED streetlights on 45km of suburban arterials in Texas reduced nighttime accidents by 38%, with a 46% drop in accidents involving vulnerable road users (pedestrians/cyclists). For narrow residential streets, Type II distribution cut glare-related complaints from residents by 82% in a California municipal project—while also boosting pedestrian safety in crosswalks.
3. Uniform Illumination Eliminates Hotspots & Dark Spots
Generic lighting creates a fatal flaw for road safety: bright hotspots directly under light poles and dark spots between them. These uneven light levels force drivers’ eyes to constantly adapt to bright and dim conditions, increasing fatigue and hiding road hazards in dark zones—especially dangerous on curved roads or near crosswalks.
Type II/III distribution solves this with elongated, consistent beam patterns that stretch the full distance between poles, delivering uniform lux/luminance levels from the base of one pole to the next. The optical design is calibrated to maintain a luminance ratio (Lmin/Lmax) of 0.4 or higher (the IES/EN 13201 gold standard for road lighting), eliminating hotspots and dark spots entirely. For residential streets with close pole spacing, Type II distribution ensures even illumination on sidewalks and road edges—critical for pedestrian safety. For medium-width arterials, Type III distribution covers all lanes with consistent light, even at standard pole spacing (30–40m). This uniform light not only boosts safety but also reduces driver fatigue during extended nighttime trips.
4. Compliance with Global Road Lighting Standards
Type II/III light distribution patterns are not just a performance feature—they’re a regulatory requirement for meeting global road lighting standards. Leading standards including EN 13201 (Europe), IES RP-8 (USA), AS/NZS 1158 (Australia), and GB 5700 (China) mandate specific light distribution patterns for different road types, alongside strict limits for glare (Unified Glare Rating, UGR) and light pollution (ULOR).
All modern LED streetlights with Type II/III distribution are engineered to exceed these standards:
- UGR ratings ≤16 for Type II (residential) and ≤18 for Type III (arterial)
- ULOR ≤5% (eliminating skyglow and light pollution)
- Compliance with lumen maintenance requirements (70% of initial lumens at 50,000 hours)
This compliance ensures municipalities and lighting specifiers avoid non-compliance fines, while also aligning with dark sky initiatives and sustainable urban lighting policies—critical for ESG and net-zero goals in 2026.
5. Flexible, Scalable Design for Mixed Roadway Networks
Most cities and suburbs have a mixed network of narrow residential streets and medium-width arterials—requiring a lighting solution that scales without sacrificing performance. Type II/III distribution patterns offer seamless scalability with a single LED streetlight platform: many modern fixtures feature interchangeable optical lenses/reflectors that can be swapped from Type II to Type III (and vice versa) to match different road types.
This flexibility eliminates the need to purchase and stock separate LED streetlights for residential and suburban roads, reducing procurement costs, inventory complexity, and maintenance training. For municipalities with limited budgets, this scalability is a game-changer—allowing for phased lighting upgrades that maintain consistency across the entire road network.
How to Select the Right Pattern: Type II or Type III for Your Roadway
Choosing between Type II and Type III distribution is not a guess—it’s a data-driven decision based on your roadway’s key characteristics. Follow this simple framework to select the perfect pattern for your 2026 project, and avoid the costly mistake of mis-matching optics to road type:
Step 1: Measure the Exact Road Width
This is the most critical factor:
- 6–8m wide: Choose Type II (narrow coverage for residential streets, bike lanes).
- 9–14m wide: Choose Type III (medium coverage for suburban arterials, urban collector roads).
- Note: If the road has a sidewalk, add 1–2m to the effective width when calculating—ensure the pattern covers both the road and pedestrian area without spill.
Step 2: Confirm Pole Height & Spacing
Type II/III distribution performance is directly tied to pole height (H) and spacing (S):
- Type II: Best with 6–8m poles, spaced 20–30m apart (S ≤ 4x H).
- Type III: Best with 8–10m poles, spaced 30–40m apart (S ≤ 5x H).
- Avoid pole spacing beyond these limits—even the best Type II/III optics will create dark spots with overextended spacing.
Step 3: Evaluate Traffic Speed & Volume
- Low speed (≤40km/h) / low volume: Type II is ideal (focused light for residential areas with high pedestrian traffic).
- Moderate speed (40–60km/h) / medium volume: Type III is perfect (wider coverage for arterials with more vehicle traffic and longer stopping distances).
Step 4: Consider Adjacent Features
- Close to residential buildings: Type II (minimal side spill to avoid light trespass and resident complaints).
- With sidewalks/bike lanes: Type III (covers both road and pedestrian/bike areas with a single beam).
- Curved roads/roundabouts: Opt for asymmetrical Type III (tapered beam follows the curve, eliminating dark spots).
Quick Selection Cheat Sheet
| Road Scenario | Recommended Distribution |
|---|---|
| 7m residential street, 7m poles, 25m spacing | Type II |
| 12m suburban arterial, 9m poles, 35m spacing | Type III |
| 6m bike lane + 1m sidewalk | Type II |
| 10m urban street + 2m sidewalk | Type III (asymmetrical) |
Implementation Best Practices for Type II/III LED Streetlights (2026)
Even the best Type II/III distribution optics will fail with incorrect installation or calibration. To unlock their full potential—precision illumination, energy savings, and safety—follow these industry-leading implementation steps for your 2026 project:
1. Conduct a Road Lighting Audit First
Before selecting fixtures, map every road segment’s width, pole height/spacing, traffic speed, adjacent features, and current illumination levels (lux/luminance). Use a light distribution analyzer to identify existing pain points (glare, dark spots, light spill) and align Type II/III selection with your project’s safety/efficiency goals.
2. Select Fixtures with Interchangeable Optics
Prioritize LED streetlights with swappable prismatic/ micro-structured lenses (polycarbonate or glass) that support both Type II and Type III distribution. This future-proofs your investment—allowing you to adjust the pattern if road geometry (e.g., widening) or traffic needs change. Glass lenses offer superior scratch/UV resistance for high-traffic areas; polycarbonate is lighter and shatterproof for rural roads.
3. Optimize Fixture Tilt Angle
Mount the LED streetlight with a 1–5° downward tilt (toward the road) to ensure the Type II/III beam is focused exactly on the road surface—this eliminates light spill onto non-target areas (e.g., rooftops, grass) and reduces glare. For curved roads, tilt the fixture slightly toward the curve to follow the beam with the road’s bend.
4. Hire IES/ CIBSE Certified Lighting Installers
Type II/III distribution requires precision optical calibration—not just basic electrical installation. Work with contractors certified by the IES (USA) or CIBSE (Europe) in road lighting design to ensure fixtures are mounted, angled, and aligned correctly. Certified installers will also conduct on-site light testing to verify compliance with standards.
5. Test & Calibrate Post-Installation
After installation, conduct on-site testing with a lux meter and glare meter to verify:
- Uniform lux/luminance levels (no hotspots/dark spots)
- UGR/ULOR compliance with local standards
- No light trespass or spill onto adjacent properties/areas
Adjust the fixture tilt angle or swap optics if any issues are detected—this small step ensures long-term performance.
6. Pair with Smart Control Systems
Maximize efficiency by integrating Type II/III LED streetlights with smart lighting controls: 0–10V/DALI dimmable drivers, motion sensors, and photocells. For low-traffic residential streets (Type II), dim lights to 20–30% during late nights; for suburban arterials (Type III), use motion sensors to brighten for peak traffic. This combines precision light distribution with automated energy savings—the ultimate 2026 road lighting solution.
2026 Trends in Type II/III Light Distribution Technology
As LED streetlight optics and smart technology evolve, Type II/III distribution patterns are becoming even more advanced—blending precision light control with AI, sustainability, and smart city integration. Here are the top trends shaping this technology in 2026:
1. AI-Optimized Type II/III Optics
Machine learning algorithms are now being used to design custom-tailored Type II/III patterns for unique road geometries (e.g., narrow winding residential streets, medium-width roads with irregular sidewalks). AI optimizes the beam spread to eliminate even the smallest dark spots, while also minimizing energy use—delivering hyper-precise illumination for non-standard roadways.
2. Solar-Powered Type II/III LED Streetlights
Off-grid solar-powered LED streetlights with integrated Type II/III optics are gaining massive traction in rural and suburban areas—combining precision light control with 100% renewable energy. These fixtures use high-efficiency 200+ lm/W LEDs and solar panels sized to match the Type II/III beam’s energy needs, eliminating grid dependency and electricity bills entirely.
3. Adaptive Type II/III Beam Adjustment
Smart LED streetlights with motorized Type II/III lenses that adjust the beam pattern in real time are emerging in 2026. The lenses widen/narrow the beam based on traffic volume (e.g., widen Type III to full coverage during peak hours, narrow to Type II for low-traffic late nights) or weather (e.g., focus the beam lower during fog to reduce glare reflection). This adaptive control maximizes safety and energy savings simultaneously.
4. Type II/III for Autonomous Vehicle (AV) Roadways
Specialized Type II/III optics are being engineered for AV-ready roadways—optimizing light reflection for AV sensors (cameras, LiDAR, radar). These patterns reduce light reflection glare on wet roads, while also ensuring consistent illumination for AVs to detect road features, pedestrians, and other vehicles with 100% accuracy.
5. Recyclable Optical Lenses for Type II/III Fixtures
Sustainability is a top 2026 priority, and manufacturers are now producing Type II/III optical lenses from 100% recycled polycarbonate/glass—without compromising light control performance. These eco-friendly optics align with municipal circular economy goals, while also reducing the carbon footprint of LED streetlight production.
Conclusion: Type II/III Light Distribution—The Precision Backbone of 2026 Road Lighting
Type II and Type III light distribution patterns are not just technical specifications—they’re the art and science of precise road lighting for the 21st century. By moving beyond generic light spread and tailoring illumination to the exact geometry of narrow and medium-width roadways, these patterns deliver unmatched energy efficiency, reduced glare, uniform illumination, and enhanced road safety—all while complying with global standards and sustainable urban lighting goals.
In 2026, as municipalities prioritize people-centric, efficient, and smart road infrastructure, Type II/III distribution will no longer be an optional upgrade—it will be the industry standard for all residential and suburban LED streetlight projects. Whether you’re upgrading a quiet residential street with Type II or a busy suburban arterial with Type III, these patterns ensure your LED streetlights don’t just light the road—they master it, with precision and purpose every time.
The bottom line: for precise, safe, and efficient road lighting, Type II/III distribution is the only choice for 2026 and beyond.
